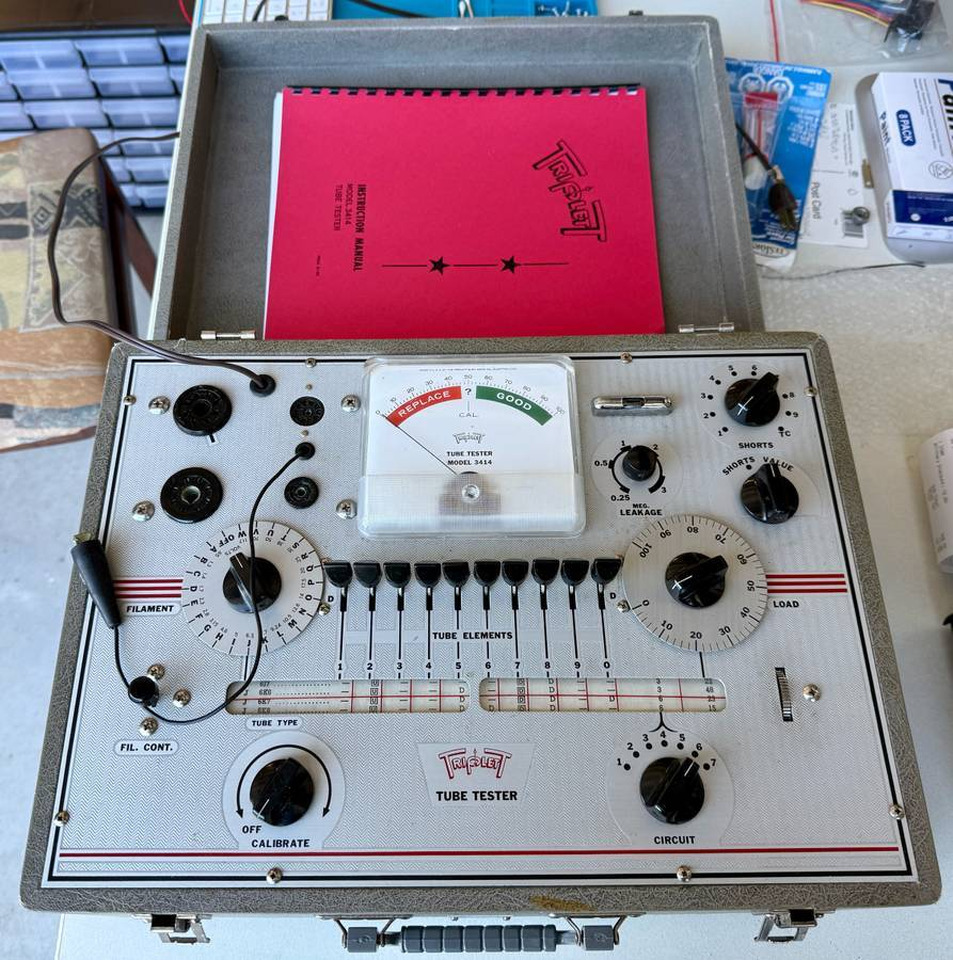

Triplett Model 3414
- Faster and More Accurate Tube Testing
- IMPROVED LEVER SWITCHING for complete control of each tube element.
- TUBES TESTED—Receiving tubes, gaseous rectifiers, resistor and ballast tube continuity and the new series filament tubes. Separate plate tests on rectifiers and diode types. The continuity test circuit may be used to check electrical appliances for shorts or open circuits.
- GREATER CIRCUIT SENSITIVITY for the new type tubes with low cathode current.
** TV PICTURE TUBE TESTS by means of the optional BV adapter, without removing the tube from the receiver. ** Does not include the optional adapter
- SHORT TEST—Shows slightest inter-element short while the cathodes are hot. Wide-angle neon indicator for greater visibility of the glow test. Fast and extremely simplified switching of all elements to determine all possible shorts even in a pentagrid converter.
- LEAKAGE TEST—New leakage test will indicate leakage from approximately 0.25 megohms to above 3 megohms.
- CALIBRATION INDICATOR—Permits observation and adjustment for line fluctuations thereby insuring greater test accuracy. Line voltage can be checked at any time automatically by releasing value button (sw) for indication on the meter.
- SPEED-ROLL CHART with test settings for over 400 tubes at the flick of a finger. The controls are located immediately adjacent to the switch skirt for fast set-up.
- FILAMENT VOLTAGES (Full Range)—0.65 to 117 volts in 23 steps.
- FILAMENT CONTINUITY—By push button.
- CIRCUIT—New revised circuit—Modified plate conductance for closer correlation to tube characteristics.

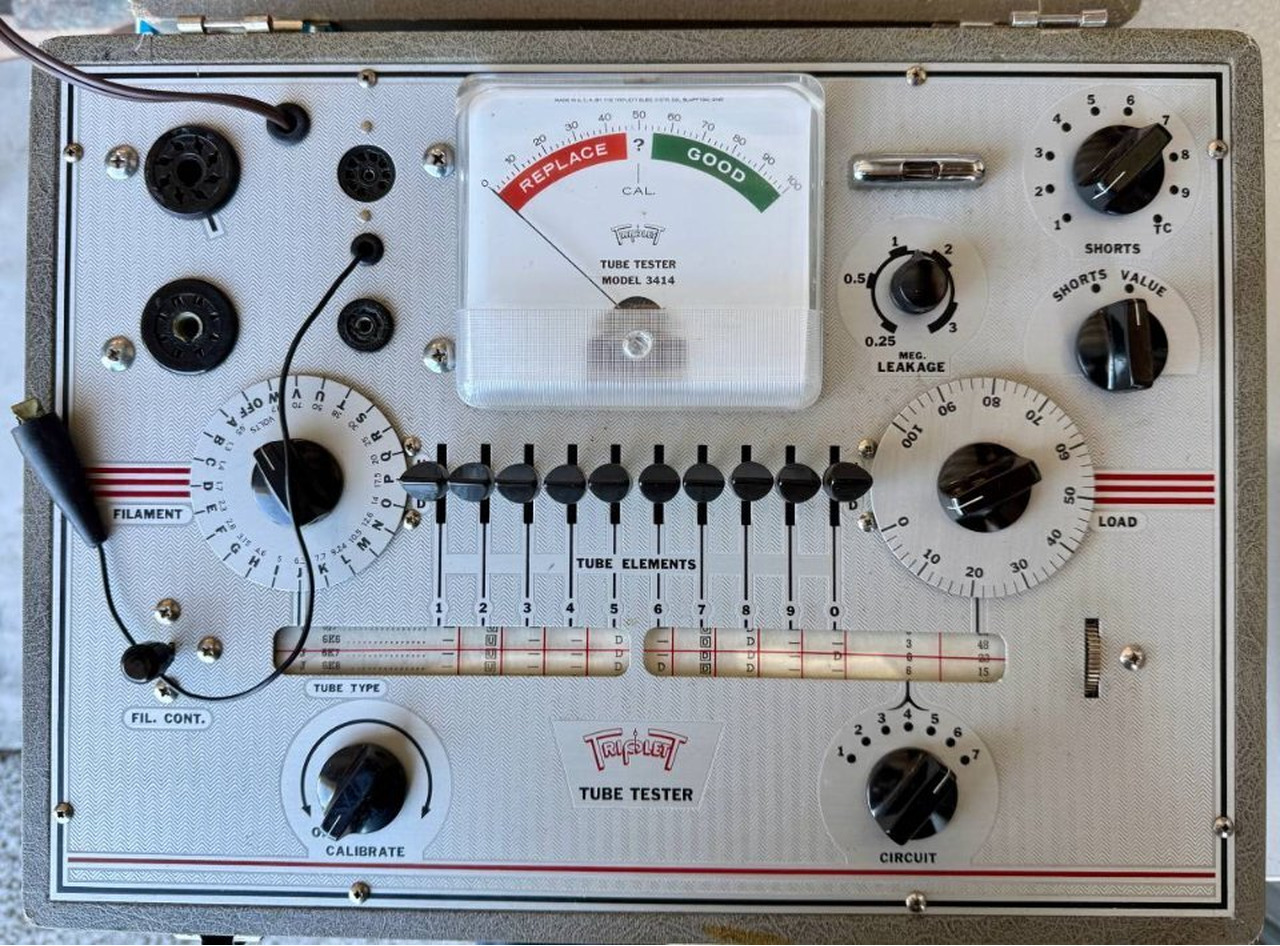

- BIG 4-INCH METER, direct reading “REPLACE—?—GOOD” dial. Model 420-PL 500 microamperes.
- PANEL—Easy to read, black markings.
- POWER SUPPLY—117 volts and 50-60 cycle, A. C.
- WEIGHT—12 lbs. net.
========================================================
***** Local sale and cash only *****
